Press Release: Vortox Air Technology’s Oil Bath Air Cleaners Excel As Precleaners

by

Press release date: October 21, 2015

Vortox Air Technology, Inc.
121 South Indian Hill Boulevard
Claremont, CA 91711
USA

Claremont, CA – Vortox Air Technology, Inc., an American manufacturer of innovative solutions to many industries’ air filtration needs, reminds consumers that its oil bath air cleaners make excellent precleaners when used in conjunction with another air cleaner.

With an oil bath air cleaner as a first line of defense, followed by a second air cleaner – usually a dry air cleaner – engines are better protected from dirt and contaminants that can cause breakage, downtime, and other problems. Using the oil bath as a precleaner also extends the life of the primary air cleaner because so much of the dirt is caught before reaching it.

This method, which doesn’t void existing warranties, results in less downtime for maintenance since the paper filters don’t have to be changed as often and fewer paper filters need to be purchased.

Oil bath air cleaners function so well as precleaners because they are highly efficient and are able to process large amounts of dirt much better than dry air cleaners. And since the only necessary servicing is a generic oil change, they require much less maintenance.

Sizes from 75-1500 CFM are available. All Vortox oil bath air cleaners attain 90% efficiency at only 20% CFM capacity, and they come in a variety of styles for all applications.

Oil bath air cleaner feature self-washing filter elements, large dust-holding capacity, vertical mounting capability, carbon steel construction, and a large variety of sizes. Dry air cleaners protect engines using advanced filter paper technology to provide 99.99% efficiency and are available in single-stage or multistage configurations for the harshest environments.

For more information on Vortox’s complete line of oil bath air and dry air cleaners, along with the rest of the Vortox product line, please visit Vortox Air Technology at www.vortox.com or call (909) 621-3843.

About Vortox Air Technology, Inc.

Beginning in the 1950s, Vortox Company participated with others in the industry to establish the basic specifications of all air filtration devices used globally in automotive, industrial, agricultural, and military applications. Vortox designed and developed the integrated cap and screen-polished stainless steel air cleaner seen today on cowl-mounted class 8 trucks and has continued to serve the oil, automotive, trucking, alternative-fuel, electromotive, agriculture, industrial, and defense industries, providing a complete line of oil bath and dry type air cleaners, separators, and accessories to original equipment manufacturers and additional distributors. In January 2010, Vortox Air Technology, Inc. acquired the sales and manufacturing assets of Vortox Company.

Contact:
Jenna Harrison – Sales
John Hyatt – Sales Manager
(909) 621-3843
vortox@vortox.com
www.vortox.com

For a downloadable version of this press release click here.

Construction of G and GA Oil Bath Air Cleaners

by

Posted: December 10th, 2014

G GA ConstructionG GA Air Flow

The G and GA styles of Oil Bath Air Cleaners are very similar in design because they are engineered for use on large applications. They are composed of four elements: the Body Assembly, the Prefilter, the Disc, and the Cup.

The Body Assembly houses the Vortox Air Technology filter element, which is made of finely coiled interlocking steel wire and will sustain the life of the product.

The continuous circulation of oil throughout the air cleaner on a controlled basis from low to high air velocity creates a large holding capacity.

The Prefilter catches chaff, lint, and large dirt particles before it reaches the main filter and deflects the heavier dirt and oil into the Oil Cup. The Prefilter is easily removable for quick servicing.

The Disc controls the proper measuring and dispersion of oil from the Cup.

The Cup serves as an oil and dirt reservoir, which should be emptied when the oil thickens to the consistency of SAE 60 oil at 70 degrees Fahrenheit or when the Cup is 1/4 filled with dirt.

Please note: An Oil Bath Air Cleaner will last as long as it is serviced properly. Environments producing extreme amounts of dust will need to service air cleaners more frequently. For servicing instructions, please refer to the “Service Instructions” folder located in the Literature section.

Construction of S/SA Oil Bath Air Cleaners

by

Posted: December 9th, 2014

Vortox Air Technology, Inc.’s S and SA style Oil Bath Air Cleaners are compact and light weight but still clean extremely well and require less space for mounting.

HOW IS IT MADE?

S SA Assembly

S and SA styles of Oil Bath Air Cleaners are made with three main units: the Body Assembly, the Vortex Chamber, and the Cup.

HOW DOES IT WORK?

Air Flow

The air flowing through the Air Cleaner is first centrifugated by the Vortex Chamber to remove the heavier dust particles. The air then flows into the filter element, carrying with it oil from the oil reservoir, or the Cup. The dust remaining suspended in the air, with the oil picked up from the Cup, impinges upon the filter surfaces. The cleaned air passes on through the filter, and the dust laden oil drains back to the reservoir. Clean oil is displaced from below the Disc and the cycle is continued. The circulation of oil is both rapid and continuous.

Please note: An Oil Bath Air Cleaner will last as long as it is serviced properly. Environments producing extreme amounts of dust will need to service air cleaners more frequently. For servicing instructions, please refer to the “Service Instructions” folder located in the Literature section.

Oil Bath Air Cleaners as Precleaners

by

Posted: December 3rd, 2014

Did you know…

Vortox Air Technology Oil Bath Air Cleaners make the perfect Precleaner for mining, industrial, and excavation applications.

What is a Precleaner?


A Precleaner is usually attached to an air cleaner’s inlet tube and is used to filter out large dirt and debris. Precleaners are commonly used in environments that produce heavy amounts of dirt, dust, and other contaminants. They are an added protection for the engine, and also reduce the amount of filter element change-outs in the air cleaner by collecting the majority of the dirt.

Why an Oil Bath?

  • -They can attain a 98% efficiency
  • -They are lined with the Vortox filter element, which is self-washing and sustains the life of the product
  • -They have a large dust holding capacity, which means fewer filter change outs, and less down time for machinery
  • -When used as a precleaner they will protect air cleaners and engines better than a paper filter air cleaner alone
  • -Air cleaners using oil wash technology have a 90% efficiency when using only 20% of cfm capabilities
  • -Vortox Air Technology has Oil Bath Air Cleaners in sizes ranging from 75-1500 cfm in a variety of styles
  • -The cost of maintenance is low: only replacement oil

Overall


Using a Vortox Air Technology Oil Bath Air Cleaner as a precleaner for your application will save you time, money, and lengthen the life of your equipment.

Find Out More


Find out which Oil Bath Air Cleaner will best assist your application by visiting the Oil Bath Air Cleaner Pages. Please contact us with any questions or to request further information. Our knowledgeable associates are more than happy to help and will ensure that the proper size is determined!

Vortox Products Press Release

by

Press release date: October 21, 2014

Vortox Air Technology Produces
Superior Air Filtration Solutions

Among Vortox’s Strengths Are Its
Custom Production, On-Site Engineering,
Deep Draw Capabilities, and Customer Collaboration

Vortox Air Technology, Inc.
121 South Indian Hill Boulevard
Claremont, CA 91711
USA

Claremont, CA—Vortox Air Technology, Inc., an American manufacturer of innovative solutions to air filtration needs for many industries, offers a wide variety of products, accessories, and services.

Vortox excels at producing custom, high-quality, diverse applications using almost entirely domestic materials. All products are engineered and constructed on site at Vortox’s facility in
Claremont, California, so there is no need for outsourcing.

Another of Vortox’s advantages is the fact that the company performs Deep Draw, a prized and uncommon procedure. Combining Deep Draw with its ability to polish parts to the clearest and brightest finishes possible makes Vortox truly unique.

And Vortox’s legendary close collaboration with its customers empowers it to create the perfect custom product for nearly any industrial requirement.

PRODUCTS




Following is a sampling of Vortox Air Technology’s product line. For more information on any of these products, please visit www.vortox.com.

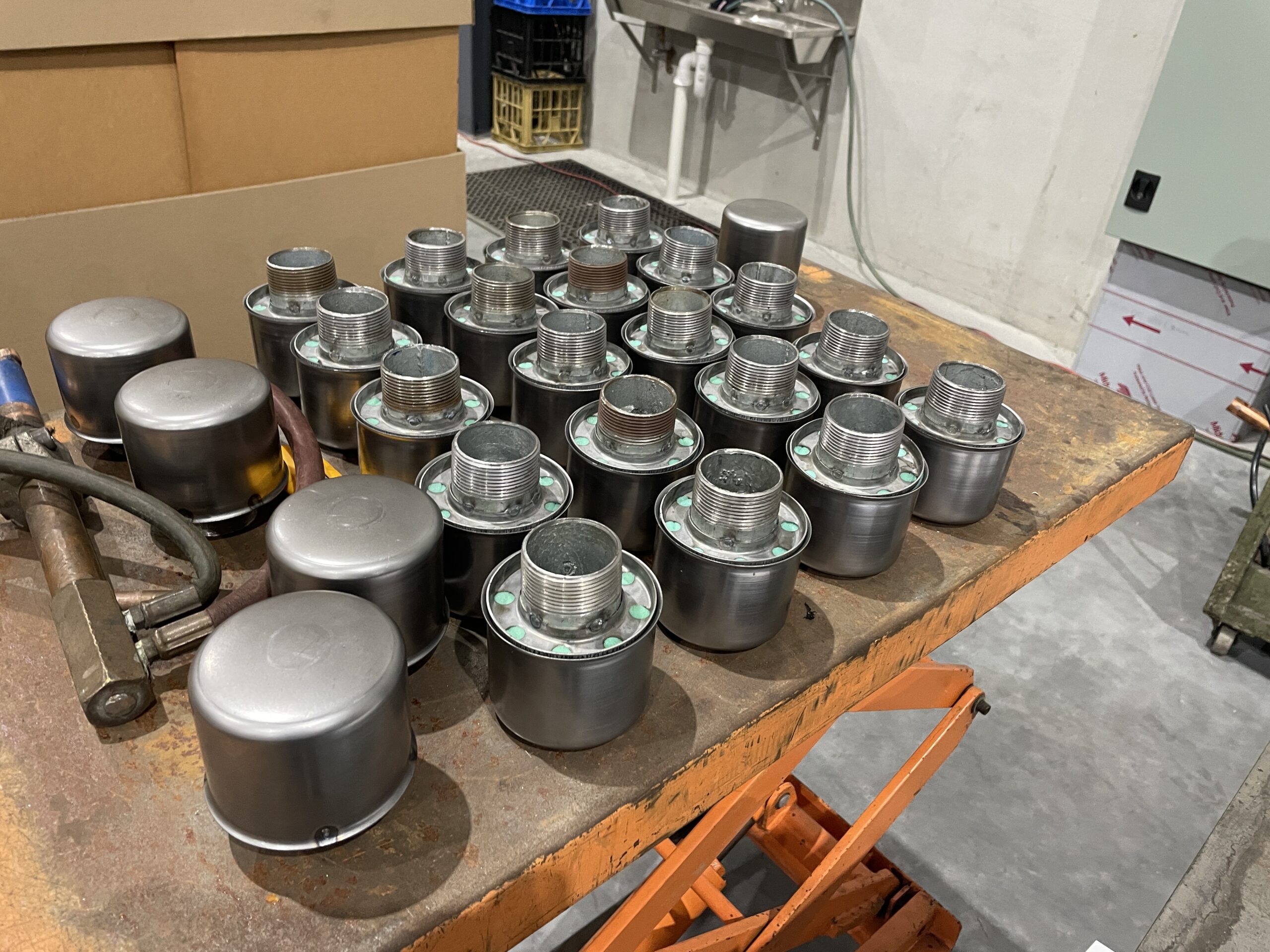

– Breather Caps are rugged, durable, and suitable for the harshest environments. They feature all-steel construction; resistance-welded joints; choice of polyurethane foam, woven galvanized steel mesh, or woven stainless steel mesh interior; and baked polyester powder coat finish.

– Liquid Samplers come as standard Liquid Samplers and In-the-Pipe Samplers, with a variety of accessories available.

  • Liquid Samplers are precision instruments for capture-grabbing and composite sampling. Easy to install, use, and maintain, they are available in standard 316L stainless steel or Teflon®-coated 316L stainless steel on internal surfaces where the effluent is captured.
  • In-the-Pipe Samplers use a two-ball valve assembly to collect liquid samples. An external upper ball rests on an intake orifice until liquid causes it to float. A lowerball then floats and seals the bottom of the orifice.
  • Accessories include Grate Assemblies, Sump Assemblies, Eye Bolts and Cables, Sump Assembly Lids, Plug Assemblies, and Teflon® Coating.

– Separators use coalescing media to filter oil and dirt out of air, or water out of fuel. Lined with self-washing Vortox filter elements, the customizable separators are vertical mounting and have electrogalvanized-coated, cold-rolled carbon steel construction with black baked polyester coat finish.

– Air Cleaners are manufactured in both standard and new Low Profile styles. Truck Blower Air Cleaners, Alternate Fuel Air Cleaners, Oil Bath Air Cleaners, Dry Air Cleaners,
and Marine Air Cleaners are also available.

  • Truck Air Cleaners use Vortox filter elements to keep truck engines running cleaner longer with their rugged and durable all-T304 stainless steel construction, large dirt-holding capacity, and Vortox-pioneered integrated Inlet Cap design. They’re offered in 13-inch and 15-inch models and are fully customizable.
  • Low Profile Air Cleaners have shortened screens and studs to put a stylish accent on the rugged, reliable Truck Air Cleaner of choice for truckers around the world.
  • Truck Blower Air Cleaners are engineered for longer service life with 99.97% filtration efficiency. Tested to SAE J726C standards, they are available in T304 stainless steel or electrogalvanized-coated carbon steel.
  • Alternate Fuel Air Cleaners are used on machines that rely on propane or compressed natural gas as a fuel source. Easy to service and constructed of rugged carbon steel finished in a black baked polyester coating, they have a higher air flow than diesel engine air cleaners.
  • Oil Bath Air Cleaners feature self-washing filter elements, large dust-holding capacity, vertical mounting capability, carbon steel construction, and a large variety of sizes.
  • Dry Air Cleaners protect engines using advanced filter paper technology to provide up to 99.99% efficiency and are available in single-stage or multistage configurations for the harshest environments.
  • Marine Air Cleaners keep engines clean in moist environments where continuous exposure to dust is not a concern. They reduce noise and filter debris before it reaches the engine. They don’t rust and are completely washable.

ACCESSORIES




Following is a sampling of the accessories available for Vortox Air Technology’s products. For more information on any of these accessories, please visit www.vortox.com.

– Filter Elements come tapered with metal ends and gaskets on both ends, with metal end plates and gaskets on the open end, with plastisol ends, with metal end plates that are open on both ends with gaskets on both, and in marine and monel styles.
– Precleaners are most often used in extremely dusty environments to reduce the dust load, extend periods between servicing, and lengthen the life of filter elements.
– Band Brackets, made of stainless or carbon steel, are primarily used for mounting purposes, typically to mount Vortox air cleaners. Current sizes are 5 to 18 inches, but smaller or larger sizes can be created. Stainless steel brackets are finished in a number 7 buff. Carbon steel brackets can be finished in a black powder coat or left unpainted for customizing.
– Inlet Caps are an essential component in the protection of filter elements used in both dry and oil wash air cleaners, functioning as a prefiltering mechanism and water shield.
– Elbows for the Truck Blower Air Cleaner comply with the increased expectations of modern truck blowers, which require higher vacuum intake pressure, without collapsing.
– Truck Blower Accessory Kit, for connecting the Air Cleaner to the Blower, contains a stainless steel tube, two hump hoses, and four stainless steel hose clamps.
– Screen Shortening Kit for the Truck Air Cleaner includes everything needed to create the sleek look of Vortox’s Low Profile Truck Air Cleaners without voiding the warranty.

SERVICES




Following is a sampling of the services provided by Vortox Air Technology. For more information on any of these services, please visit www.vortox.com.

– Contract Manufacturing is offered in the following areas: Deep Draw, Coalescence
Filtration, Air Filtration, Air Separation, Plasma Welding, and Sheet Metal Fabrication.
– Deep Draw is the cornerstone of almost all of Vortox’s products and many of its exclusive contracted products. Vortox emphasizes in the range of 12 to 24 gauge in a variety of metals, and it is capable of reaching 250 tons with depth capabilities of 24 inches.
– Coalescence Filtration media are manufactured in-house of galvanized coated and stainless steel wire, ensuring that high ambient-heat applications do not affect performance. Service life can extend for years.
– Air Filtration devices are manufactured for virtually any type of engine or compressor application, and Vortox offers complete engineering, testing, tooling, and manufacturing capabilities to suit both standard and custom applications.
– Air Separation is a core strength of Vortox’s engineering capabilities, as applications like compressors, crankcase ventilation, and brake systems require the separation of oil in an air system. Most separators are tailored to specific applications.
– Plasma Welding is performed by two machines capable of producing longitudinal welds on cylinders up to 36 inches length by 20 inches diameter. Custom fixtures provide a seamless and continuous butt weld with 100% penetration. Exceptional control of the heat-affected zone minimizes deflection and carbide precipitation.o Sheet Metal Fabrication, including final assemblies such as spot welding, seam welding, powder coating, and polishing, are completed by Vortox’s full welding and fabrication capabilities.

About Vortox Air Technology, Inc.




Beginning in the 1950s, Vortox Company participated with others in the industry to establish the basic specifications of all air filtration devices used globally in automotive, industrial, agricultural, and military applications. Vortox designed and developed the integrated cap and screen-polished stainless steel air cleaner seen today on cowl-mounted class 8 trucks and has continued to serve the oil, automotive, trucking, alternative-fuel, electromotive, agriculture, industrial, and defense industries, providing a complete line of oil bath and dry type air cleaners, separators, and accessories to original equipment manufacturers and additional distributors. In January 2010, Vortox Air Technology, Inc. acquired the sales and manufacturing assets of Vortox Company.

Contact:
John Hyatt
Sales Manager
(909) 621-3843
vortox@vortox.com
www.vortox.com
