AWA11X17A4 Header
Tuthill-Blower-png

Tuthill T650 Blower

Vortox Air Technology, Inc. is pleased to offer the AWA11X17A4 model Truck Blower Air Cleaner. Engineered and designed specifically for use on the Tuthill T650 Blower, the AWA11X17A4 measures 11″x17″x7″ in height and features an oval inlet tube which accepts a 4″ rubber hose. Its flat box shape creates a flanged outlet which bolts directly to the blower inlet and eliminates any need for mounting accessories. The T650 Blower Air Cleaner is constructed entirely of 16 and 18 gauge Carbon Steel and finished in black powder coat paint. The T650 Truck Blower Air Cleaner allows for easy servicing and filter access by releasing the six clamps which secure the flat panel filter element inside the air cleaner. The Air Cleaner uses Vortox Air Technology filter element VFP11X17.

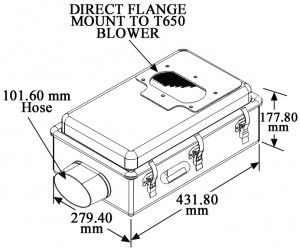

T650 Metric Drawing

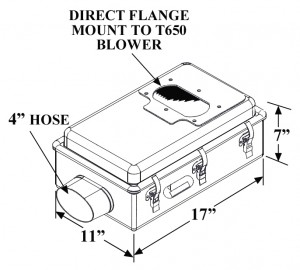

T650 Drawing
