AD Dry Air Cleaner Header
AD140R2-PNG

If heavy dust is the problem, then AD style multistage dry air cleaners are the answer. Designed for horizontal mounting, AD dry air cleaners are available with single or double louvers for maximum dust removal and high air flow. All AD air cleaners are constructed of rigid and durable Electro Galvanized coated Carbon Steel which is finished in a black powder coating.

An efficient first stage of dust removal is accomplished by spinning the dust to the end cap of the air cleaner where it is accumulated and ejected through the ejection valve. High capacity filters are used to perform final filtration prior to entering the air intake stream.

All AD style air cleaners are made to accept Vortox Air Technology Inlet Caps, which remove large debris in the air and shield from rain. Additionally, all AD style air cleaners can be mounted with our BB style Band Brackets.

Vortox Air Technology Dry Air Cleaners

Vortox Air Technology Dry Air Cleaners are designed to protect your equipment and keep it performing to maximum efficiency. Superbly engineered and constructed to offer an extended service life of each replaceable filter element by utilizing a design philosophy which minimizes restriction losses. In addition to the distinguishing rugged construction, Vortox Air Technology air cleaners also utilize Deep Draw Technology, which creates a seamless unit, where possible.

Vortox Air Technology multistage Dry Air Cleaners use technology to maximize the efficiency of the first stage, prior to dusty air entering the filter element. This extends the service life of our filter elements, which means fewer filter changes for you.



AD Single Louver

AD Single Louver

AD Double Louver

AD Double Louver

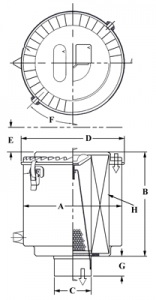

Horizontal Mounting Single Louver

Vortox_Cry-Air-Cleaners_AD-Series_Horizontal-Mounting-Single-Louver_Standard-Measurements

Horizontal Mounting Single Louver – Metric Measurements

Vortox_Cry-Air-Cleaners_AD-Series_Horizontal-Mounting-Single-Louver_Metric-Measurements

*Ejection Valve Included

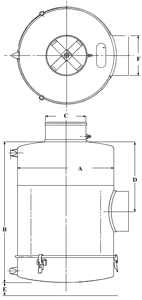

Horizontal Mounting Double Louver

Vortox_Cry-Air-Cleaners_AD-Series_Horizontal-Mounting-Double-Louver_Standard-Measurements

Horizontal Mounting Double Louver – Metric Measurements

Vortox_Cry-Air-Cleaners_AD-Series_Horizontal-Mounting-Double-Louver_Metric-Measurements

*Ejection Valve Included
